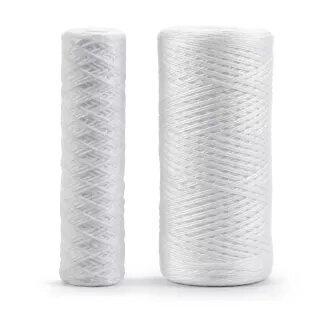

Cartuchos de cuerda enrollada Hydronix serie SWC
Reducción de partículas de arena, limo, óxido, suciedad y sarro.
Una solución rentable para la reducción de partículas de arena, limo, óxido, suciedad y sarro. Fabricados con cordón 100% polipropileno, los cartuchos enrollados en cuerda de la serie SWC pueden soportar temperaturas de hasta 165 ° F (73,9 ° C).
Son adecuados para una variedad de aplicaciones, incluidas aplicaciones residenciales y comerciales que utilizan agua municipal y de pozo. Diferentes patrones de enrollado para diferentes clasificaciones de micrones garantizan que esté obteniendo el producto adecuado para la aplicación correcta.
bebidas.
Medios de filtro: cordón de fibra de polipropileno
Núcleo: polipropileno
40 ° F a 165 ° F (4.4 ° C a 73.9 ° C)
|
2.5” DIAMETER SPECIFICATIONS |
||||||||
|
|
Part Number |
Description |
Initial ∆P (psi) at Flow Rate (gpm) |
Micron Rating |
Case Quantity |
Box Dimension (Inches) |
Weight (lbs) |
Weight (kgs) |
|
10” |
SPC-25-1001 |
2.5” x 9 3⁄4” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
1 |
40 |
13” x 11” x 21” |
14 |
6.35 |
|
SPC-25-1005 |
2.5” x 9 3⁄4” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
5 |
40 |
13” x 11” x 21” |
14 |
6.35 |
|
|
SPC-25-1010 |
2.5” x 9 3⁄4” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
10 |
40 |
13” x 11” x 21” |
14 |
6.35 |
|
|
SPC-25-1020 |
2.5” x 9 3⁄4” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
20 |
40 |
13” x 11” x 21” |
14 |
6.35 |
|
|
SPC-25-1030 |
2.5” x 9 3⁄4” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
30 |
40 |
13” x 11” x 21” |
14 |
6.35 |
|
|
SPC-25-1050 |
2.5” x 9 3⁄4” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
50 |
40 |
13” x 11” x 21” |
14 |
6.35 |
|
|
20” |
SPC-25-2001 |
2.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
1 |
20 |
13” x 11” x 21” |
14 |
6.35 |
|
SPC-25-2005 |
2.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
5 |
20 |
13” x 11” x 21” |
14 |
6.35 |
|
|
SPC-25-2010 |
2.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
10 |
20 |
13” x 11” x 21” |
14 |
6.35 |
|
|
SPC-25-2020 |
2.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
20 |
20 |
13” x 11” x 21” |
14 |
6.35 |
|
|
SPC-25-2030 |
2.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
30 |
20 |
13” x 11” x 21” |
14 |
6.35 |
|
|
SPC-25-2050 |
2.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
50 |
20 |
13” x 11” x 21” |
14 |
6.35 |
|
|
30” |
SPC-25-3001 |
2.5”x 30” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
1 |
20 |
13” x 11” x 31” |
23.1 |
10.48 |
|
SPC-25-3005 |
2.5”x 30” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
5 |
20 |
13” x 11” x 31” |
23.1 |
10.48 |
|
|
SPC-25-3010 |
2.5”x 30” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
10 |
20 |
13” x 11” x 31” |
23.1 |
10.48 |
|
|
SPC-25-3020 |
2.5”x 30” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
20 |
20 |
13” x 11” x 31” |
23.1 |
10.48 |
|
|
SPC-25-3030 |
2.5”x 30” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
30 |
20 |
13” x 11” x 31” |
23.1 |
10.48 |
|
|
SPC-25-3050 |
2.5”x 30” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
50 |
20 |
13” x 11” x 31” |
23.1 |
10.48 |
|
|
40” |
SPC-25-4001 |
2.5”x 40” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
1 |
20 |
13” x 11” x 41” |
26 |
11.80 |
|
SPC-25-4005 |
2.5”x 40” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
5 |
20 |
13” x 11” x 41” |
26 |
11.80 |
|
|
SPC-25-4010 |
2.5”x 40” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
10 |
20 |
13” x 11” x 41” |
26 |
11.80 |
|
|
SPC-25-4020 |
2.5”x 40” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
20 |
20 |
13” x 11” x 41” |
26 |
11.80 |
|
|
SPC-25-4030 |
2.5”x 40” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
30 |
20 |
13” x 11” x 41” |
26 |
11.80 |
|
|
SPC-25-4050 |
2.5”x 40” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
50 |
20 |
13” x 11” x 41” |
226 |
11.80 |
|
|
4.5” DIAMETER SPECIFICATIONS |
||||||||
|
|
Part Number |
Description |
Initial ∆P (psi) at Flow Rate (gpm) |
Micron Rating |
Case Quantity |
Box Dimension (Inches) |
Weight (lbs) |
Weight (kgs) |
|
|
SPC-45-1001 |
4.5” x 9 3 ⁄ 4 ” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
1 |
12 |
14” x 10” x 21” |
12 |
5.44 |
|
SPC-45-1005 |
4.5” x 9 3 ⁄ 4 ” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
5 |
12 |
14” x 10” x 21” |
12 |
5.44 |
|
|
SPC-45-1010 |
4.5” x 9 3 ⁄ 4 ” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
10 |
12 |
14” x 10” x 21” |
12 |
5.44 |
|
|
SPC-45-1020 |
4.5” x 9 3 ⁄ 4 ” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
20 |
12 |
14” x 10” x 21” |
12 |
5.44 |
|
|
SPC-45-1030 |
4.5” x 9 3 ⁄ 4 ” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
30 |
12 |
14” x 10” x 21” |
12 |
5.44 |
|
|
SPC-45-1050 |
4.5” x 9 3 ⁄ 4 ” |
1 psi at 10 gpm (.1 bar at 38 L/min) |
50 |
12 |
14” x 10” x 21” |
12 |
5.44 |
|
|
|
SPC-45-2001 |
4.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
1 |
6 |
14” x 10” x 21” |
9 |
4.08 |
|
SPC-45-2005 |
4.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
5 |
6 |
14” x 10” x 21” |
9 |
4.08 |
|
|
SPC-45-2010 |
4.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
5 |
6 |
14” x 10” x 21” |
9 |
4.08 |
|
|
SPC-45-2020 |
4.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
10 |
6 |
14” x 10” x 21” |
9 |
4.08 |
|
|
SPC-45-2030 |
4.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
20 |
6 |
14” x 10” x 21” |
9 |
4.08 |
|
|
SPC-45-2050 |
4.5”x 20” |
1 psi at 20 gpm (.1 bar at 76 L/min) |
50 |
6 |
14” x 10” x 21” |
9 |
4.08 |
|
